Remote Debugging Sitecore with Visual Studio

Why is this needed?

  • Can't reproduce the issue in the Sitecore instance available in developer machine
  • No Visual Studio on the server (Mostly Stage and Prod)
  • Additional logging hasn't helped or discrepancies between environments
  • Deployment of additional logging is not allowed as we need
  • Issue seen on a common or Shared Sitecore instance for developers

Pre-Requisites

Access to install or copy the Visual Studio Remote debugging tool
Execute the remote debugger service exe file
TCP Port access to connect to the service
Visual Studio version matching the debugging tool or lower version

Remote Debugging Tools

Option 1:
Download and install the remote tools on the remote server that you would like to debug. Newer remote tools versions are compatible with earlier Visual Studio versions, but earlier remote tools versions aren't compatible with later Visual Studio versions. Ensure the remote tools have the same architecture as the machine you're installing them on. Most new server installs are 64-bit.

Visual Studio Link
2019 Remote tools
2017 Remote tools
2015 Remote tools
2013 Remote tools

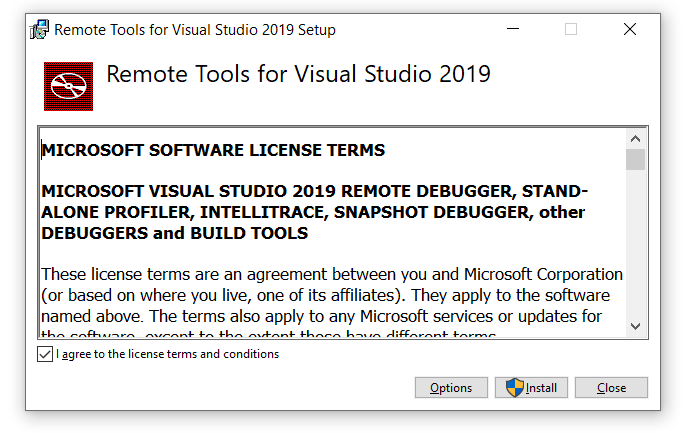

Open the installer
Sitecore_Remote_Debuging_install_1

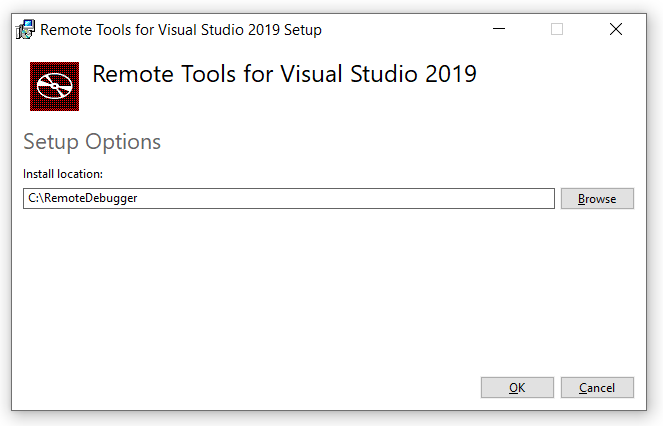

Choose option if you would like to install in a different location
Sitecore_Remote_Debuging_install_2

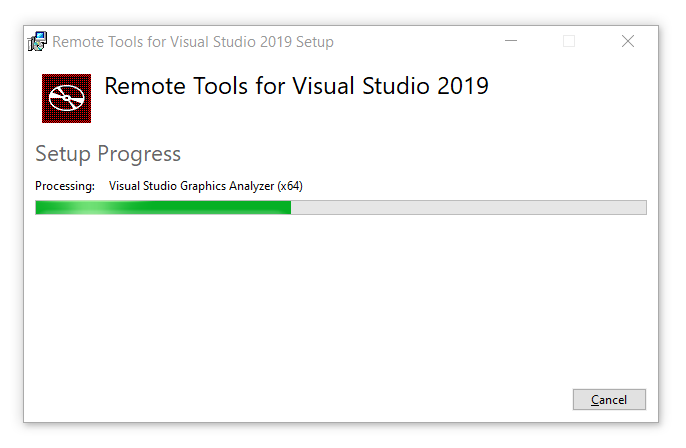

Install takes few minutes
Sitecore_Remote_Debuging_install_3

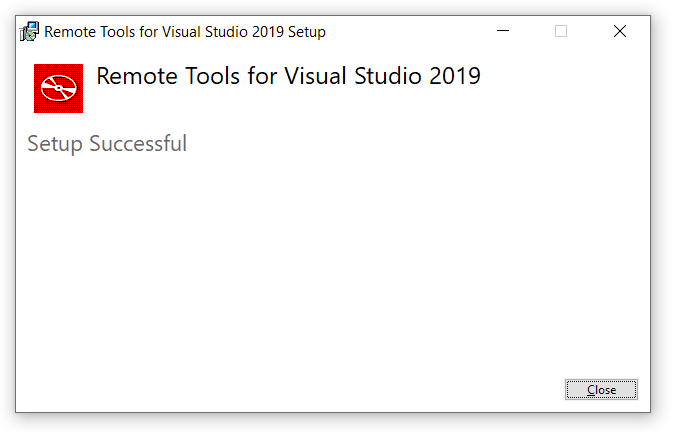

Install successfully completed
Sitecore_Remote_Debuging_install_4

Option 2:
Copy the installation folder from a local install to the server we plan to debug.
The default installation folder location for 64-bit installation is as follows
"C:\Program Files\Microsoft Visual Studio 16.0\Common7\IDE\Remote Debugger\x64"

Execute Remote Debugging Tool

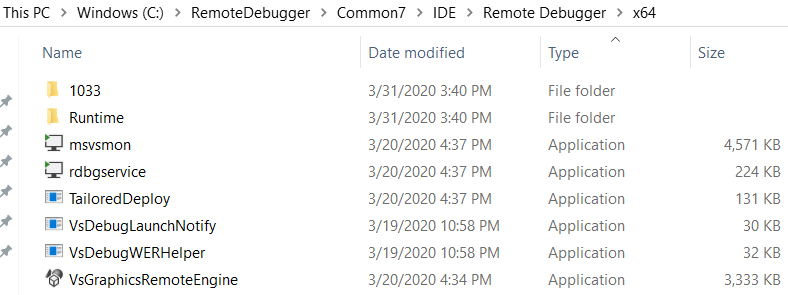

Open the file "msvsmon.exe" from the installation folder or the copy location on the remote server

Sitecore_Remote_Debuging_Execute_1

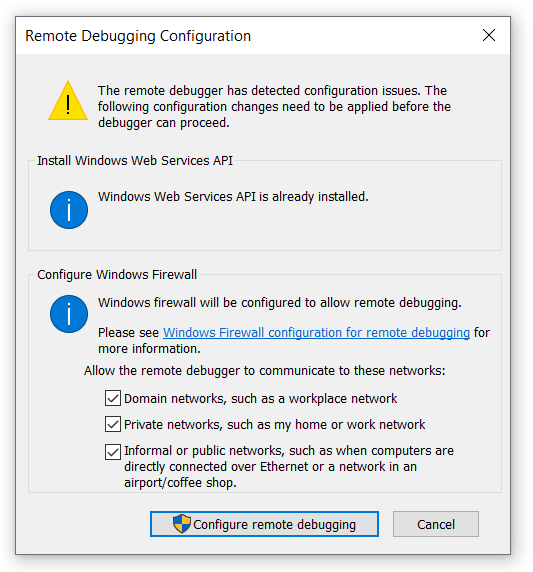

First time you open it might prompt to add the firewall exception on the port if its active.
Sitecore_Remote_Debuging_Execute_2

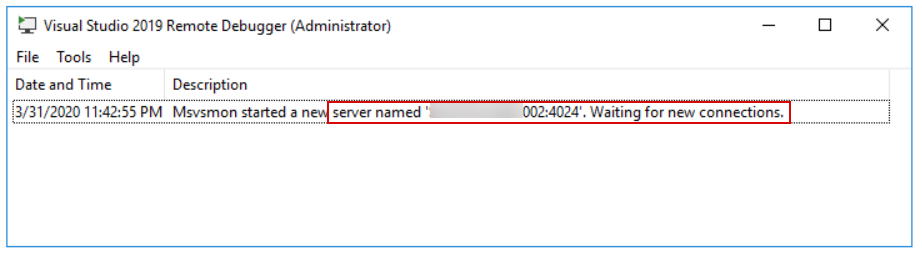

Noe the tool should run with the following message.
Msvsmon started a new server named "server name:portnumber".Waiting for new connections
In this example server name: 002 Port number: 4024
Sitecore_Remote_Debuging_Execute_3-1

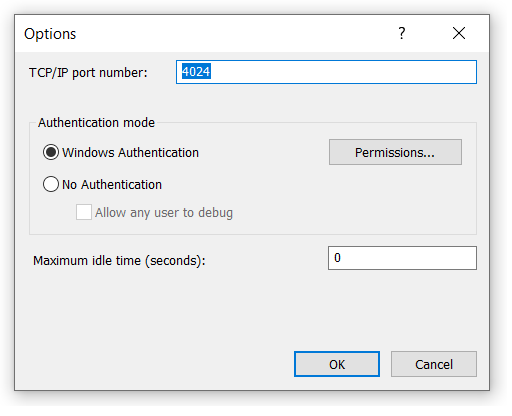

Navigate to Tools > Options
Port
Default port for VS2019 is 4024. The port number is different for each version of Visual Studio as follows but this can be modified as per our use.

Visual StudioPort
20194024
20174022
20154020
20134018

Sitecore_Remote_Debuging_Execute_4

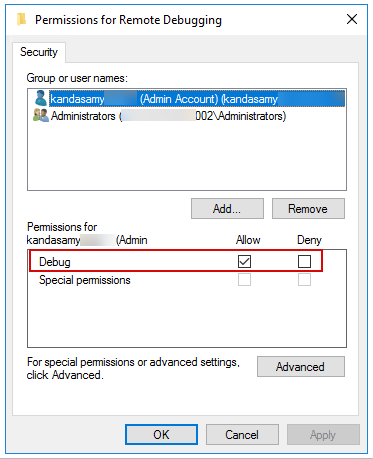

Authentication Mode:
By default, the current user executing the "msvsmon.exe" will be added and provided debug accees. Administrators group will be added and provided debug allow.
The user running Visual studio should have access to the service to debug. If there is a mismatch then you could use No Authentication option, if it is a secure network but I wouldn't recommend this.
Sitecore_Remote_Debuging_Execute_5

Note: The msvsmon.exe can also be configured as a service, to be always running on the server.
When minimized it will be available in the taskbar next to the clock.

Visual Studio Debugging

Enable the following settings before attaching the debugger.
Navigate to Tools > Options > Debugging >

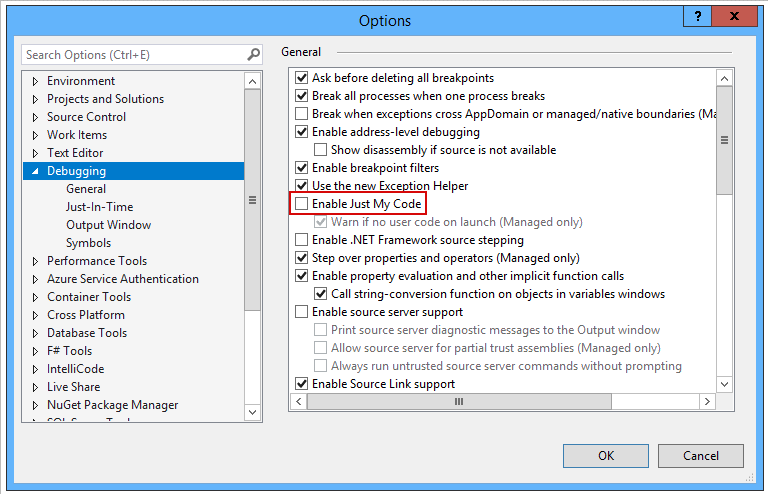

  1. General > uncheck Enable Just My Code
    Sitecore_Remote_Debuging_Attach_2

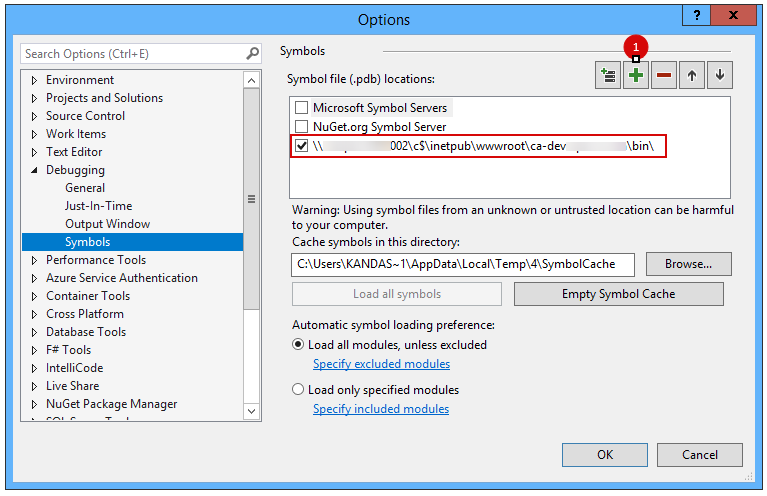

  2. Symbols > Add > Provide the file share path of the website bin folder \002\c$\inetpub\wwwroot\ca-dev\bin
    Sitecore_Remote_Debuging_Attach_3

Ensure the solution is built and deployed in debug mode

Attach Debugger

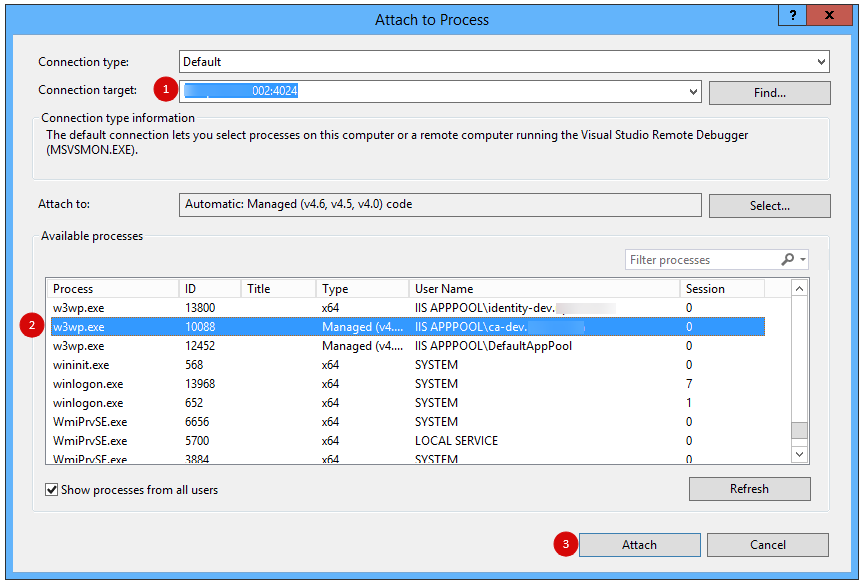

Navigate to Debug > Attach to Process > Connection target >Enter server name 002:4024 and hit enter it should list all the process from the remote server

Choose the Sitecore instance to debug and it should hit the break points when you browse the site.
Sitecore_Remote_Debuging_Attach_1

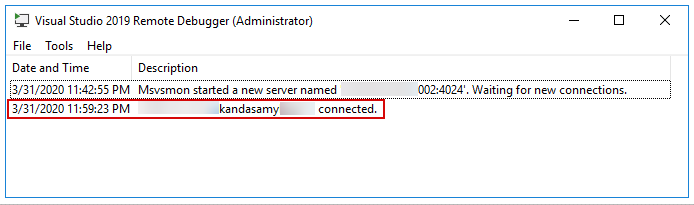

On the remote server you should see the active connections or any error occurred while connecting.
Sitecore_Remote_Debuging_Execute_6

Attach Debugger on Azure
https://cloudopszone.com/configure-remote-debugging-tool-on-azure-vm/

Attach Debugger on Docker
https://intothecloud.blog/2019/09/21/Deploying-and-Debugging-Your-Visual-Studio-Solution-to-Your-Sitecore-Docker-Containers/

Issues and Solution

Ref:
https://docs.microsoft.com/en-us/visualstudio/debugger/remote-debugging-csharp?view=vs-2019#download-and-install-the-remote-tools
https://docs.microsoft.com/en-us/visualstudio/debugger/remote-debugging?view=vs-2019

Remote debugging on Azure
https://cloudopszone.com/configure-remote-debugging-tool-on-azure-vm/

Remote debugging with Docker
https://www.konabos.com/blog/tooling-to-help-debug-your-sitecore-docker-containers

https://intothecloud.blog/2019/09/21/Deploying-and-Debugging-Your-Visual-Studio-Solution-to-Your-Sitecore-Docker-Containers/
